Job Description

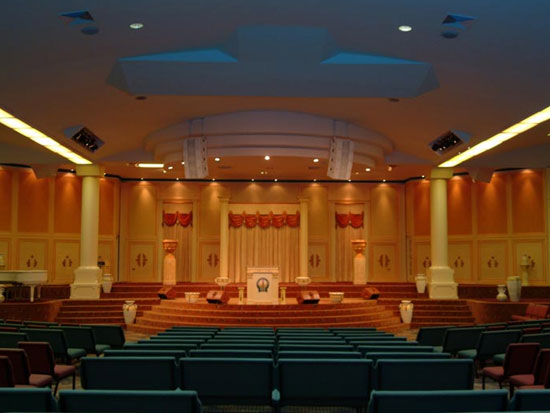

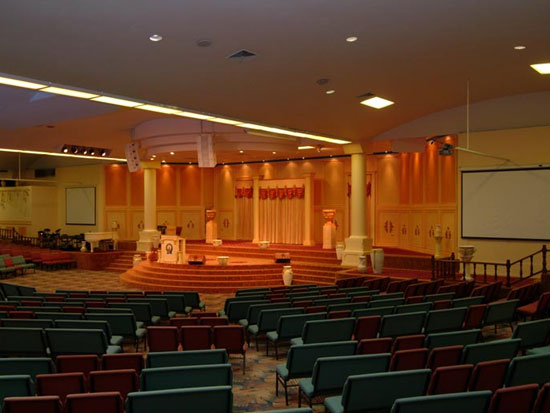

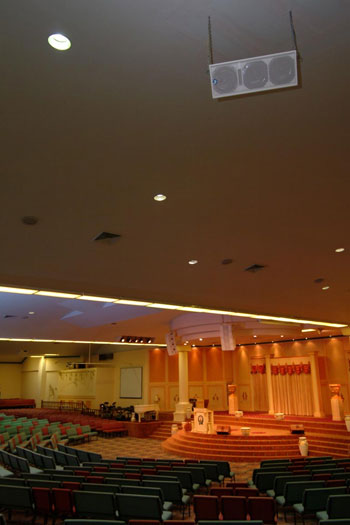

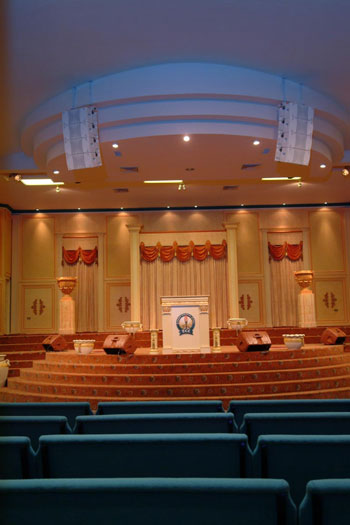

Major upgrade of speaker system, using active line array technology, and new speaker processing. Location was used for video and broadcast so the image and sight lines had to be preserved. Also installed three way split snake and 24 channel multi-track allowing for post recording.

Special Job Points

Amazingly wide coverage for a speaker so far away, very impressive spl, great vocal intelligibility in the entire venue, first active line array in the Caribbean, first installed line array in Trinidad, color matched floor monitors.... see if you can see em!

Item List

8x Renkus Heinz PNx102 active line arrays
4x Renkus Heinz PNx81/12 active 'fill' speakers
4x Mackie SRM450 floor monitors
1x 32x8 channel split isolated snake
1x DBX driverack 260
1x BSS 960 dual 1/3 octave eq
1x Fostex 2424M hard drive based multitrack recorder

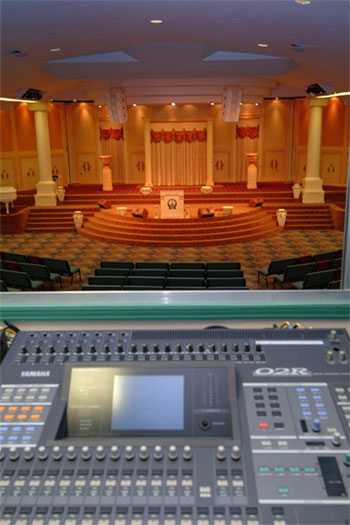

2x Yamaha O2R 96

Press release

http://www.rh.com/news/2007/trinidad.pdf
